52mm Gauge + Standard Loom
52mm Gauge + Standard Loom

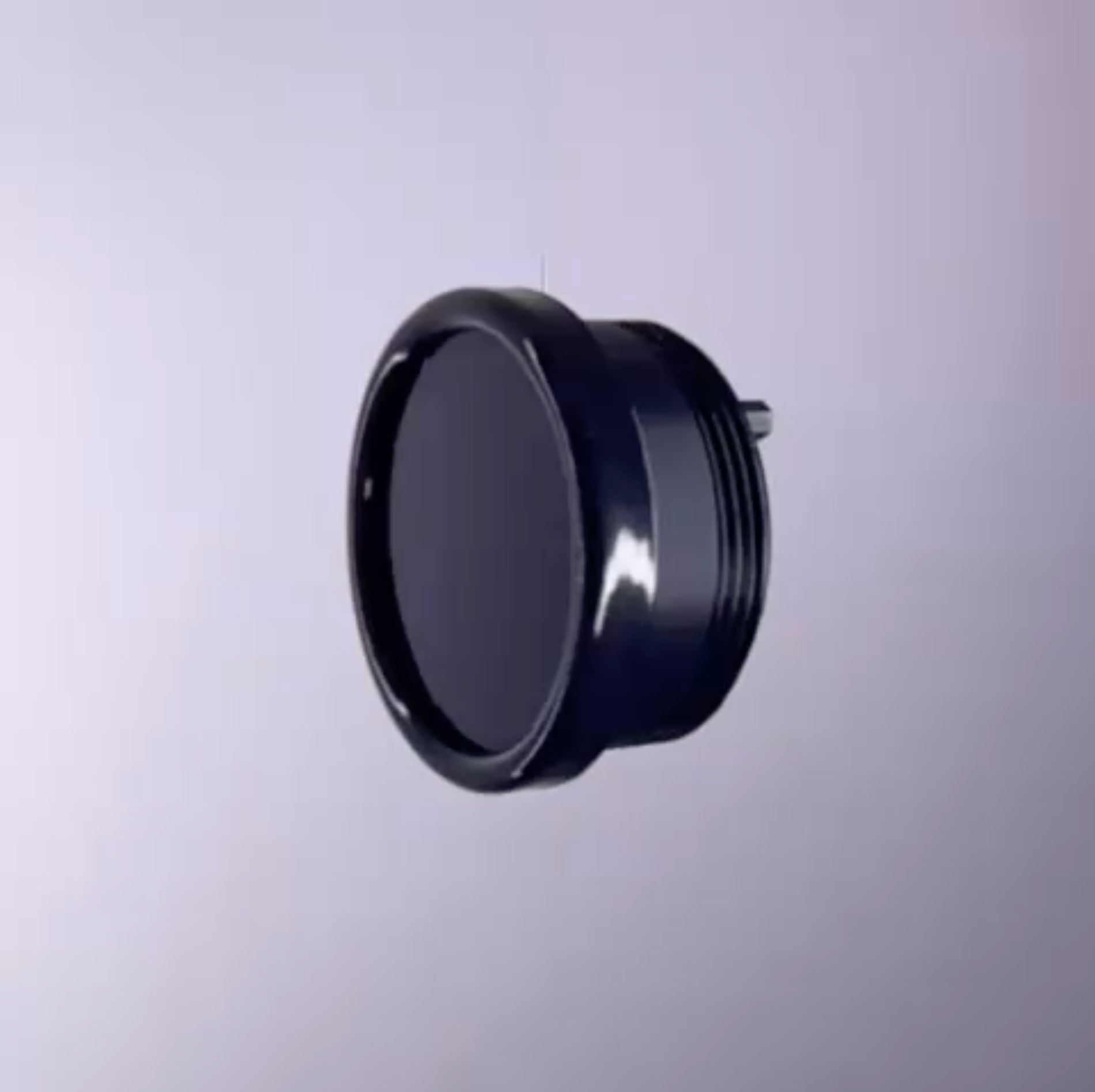

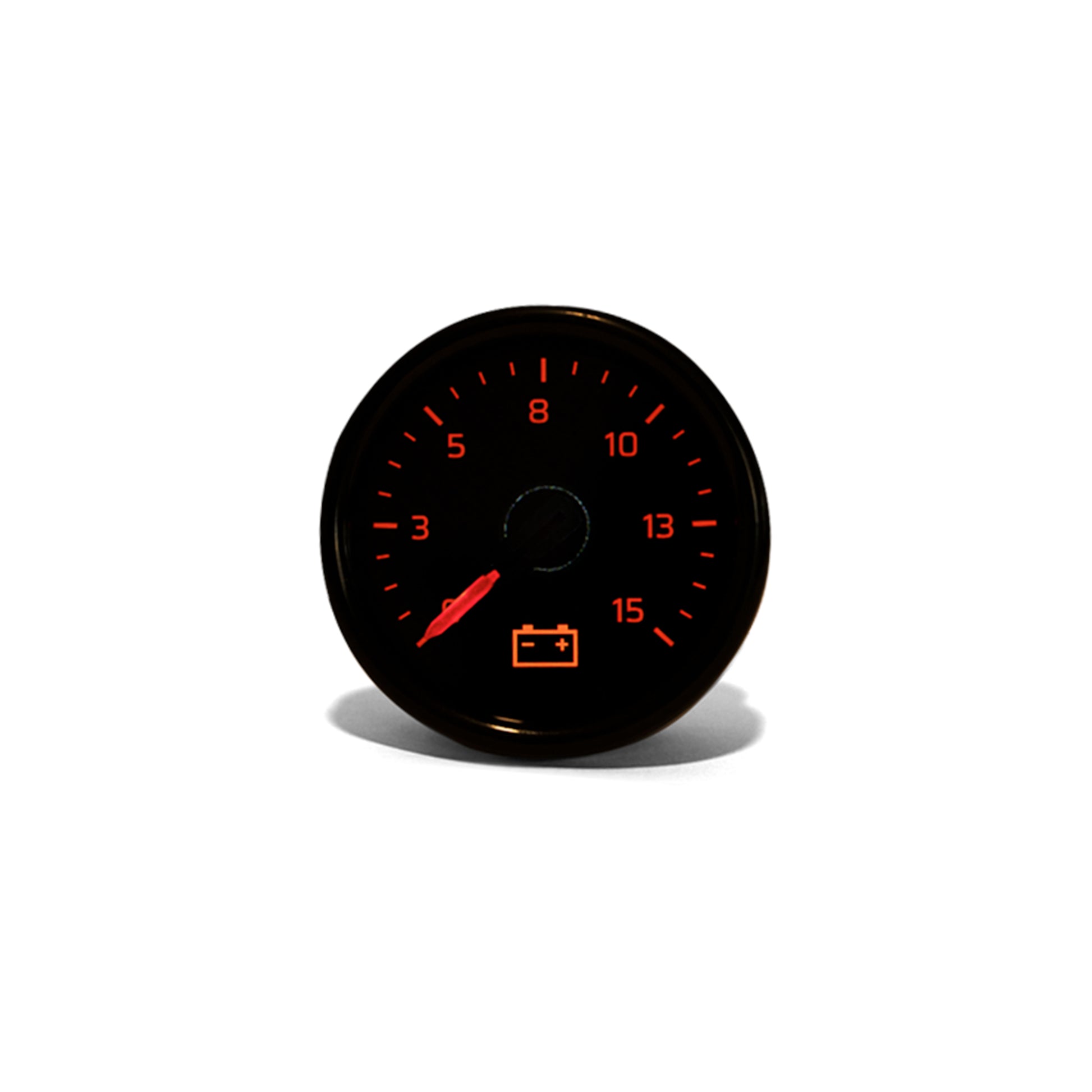

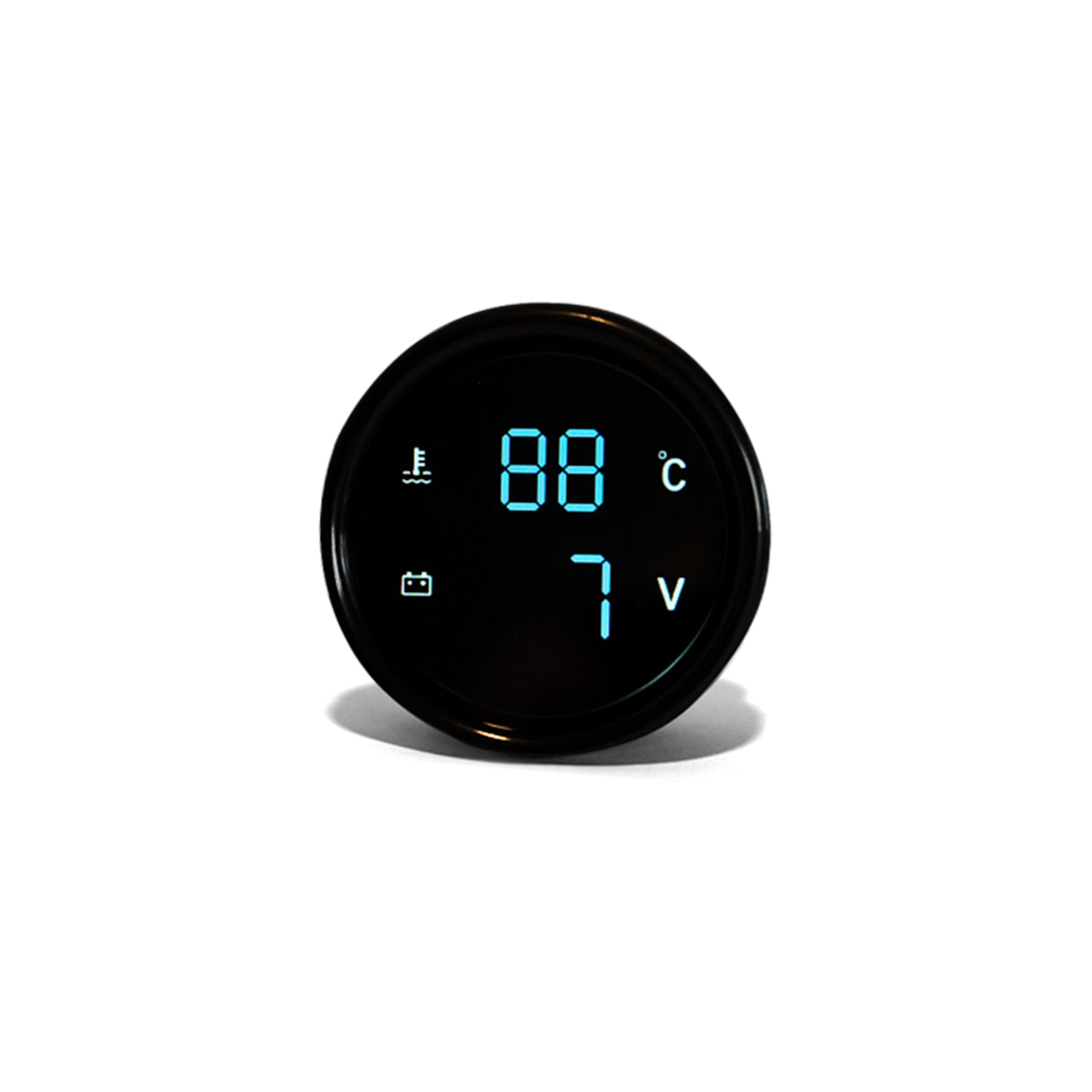

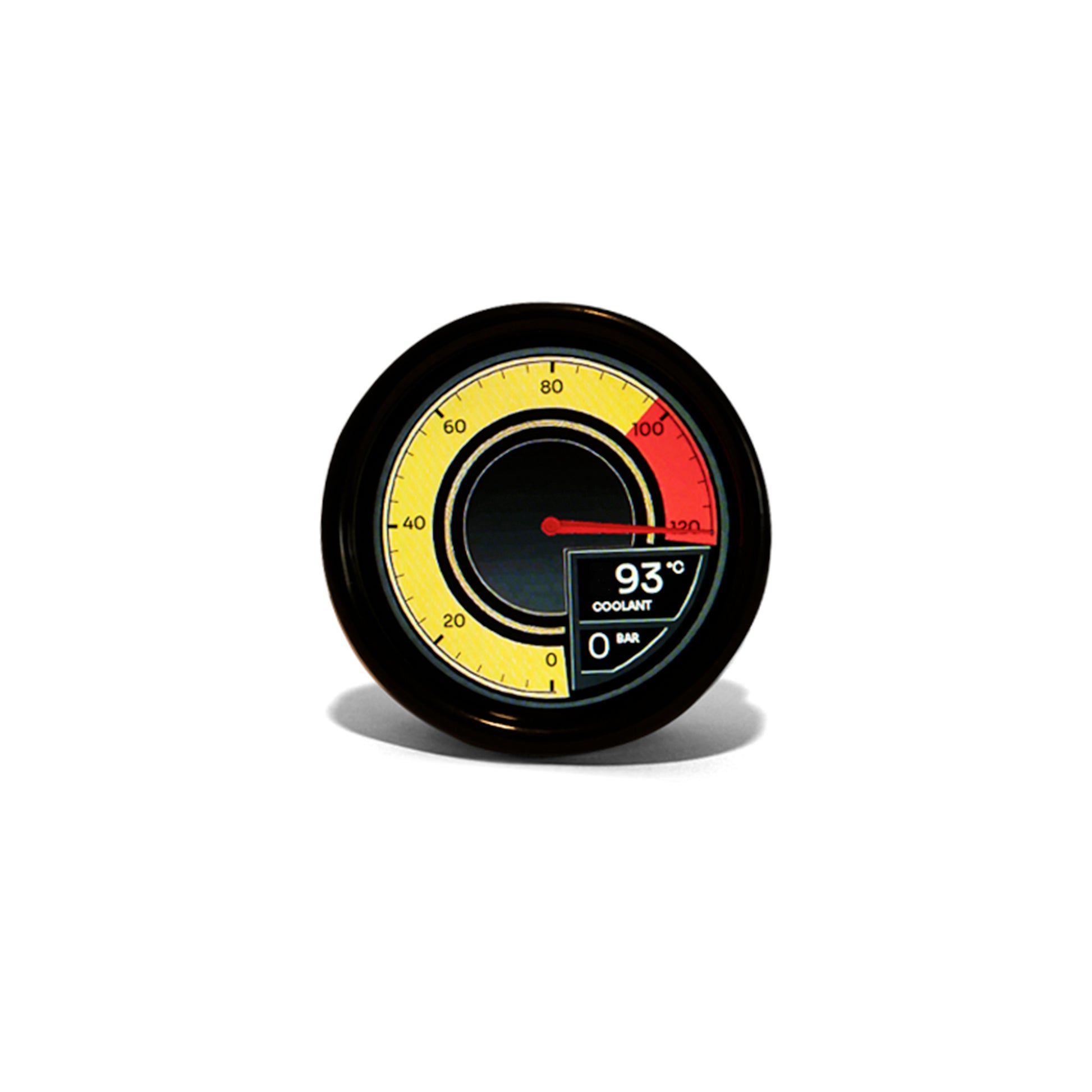

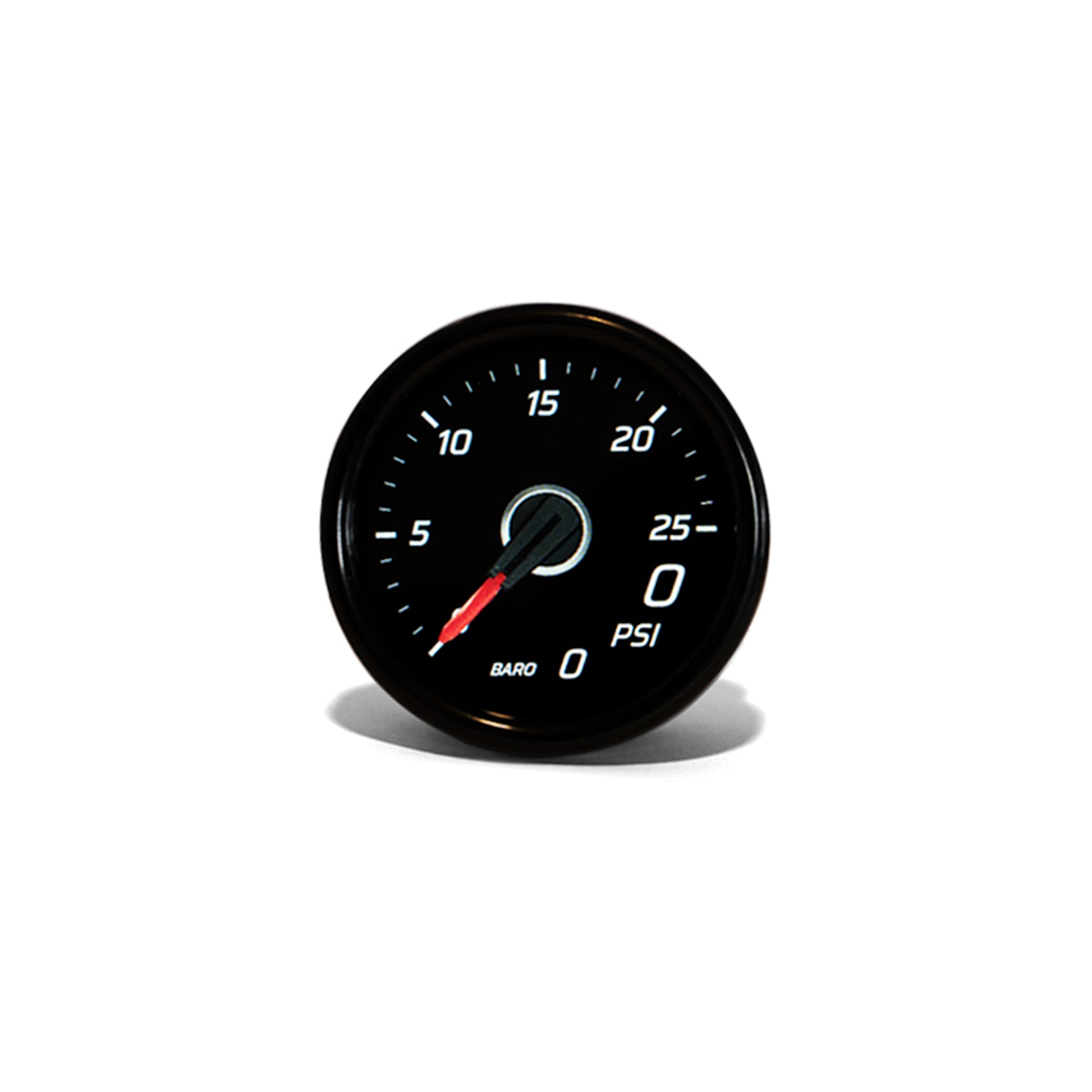

Design your own gauge — no templates, no limits. The REVVGAUGE Standard (52 mm) is a fully customisable flush-mount touchscreen gauge for cars and trucks. Build your layout in the app, load it onto the gauge, and run it independently — no phone required after setup.
INTERNATIONAL SHIPPING IS NOW CLOSED. THE REMAINING STOCK IS AVAILABLE TO AUSTRALIAN CUSTOMERS ONLY.
LIMITED STOCK!
Shipping on 7 August 2026.
🔗 Compatibility
- 6 analog inputs — supporting both 0–5 V linear and resistance-based sensors. For an EGT probe you need a thermocouple amplifier (REVVGAUGE versions coming soon). Current options:
- CAN bus / OBD-II — fully tested on OBD-II vehicles that use the ISO 15765-4 (CAN) protocol. Most vehicles from 2008 onwards should be fine, but always check first — older OBD-II protocols (ISO 9141-2, ISO 14230 / KWP2000, SAE J1850) are not supported. Confirm your vehicle’s OBD-II protocol is ISO 15765-4 before ordering. We also support Haltech! Custom CAN support is currently in beta — already implemented in both the app and the gauge and confirmed working on the bench, with vehicle testing still underway. Any compatibility issues with OBD2, Haltech or custom can can be fixed with firmware updates so let me know if you notice anything.
📦 What's included
- REVVGAUGE 52 mm gauge unit — ready to mount and use
-

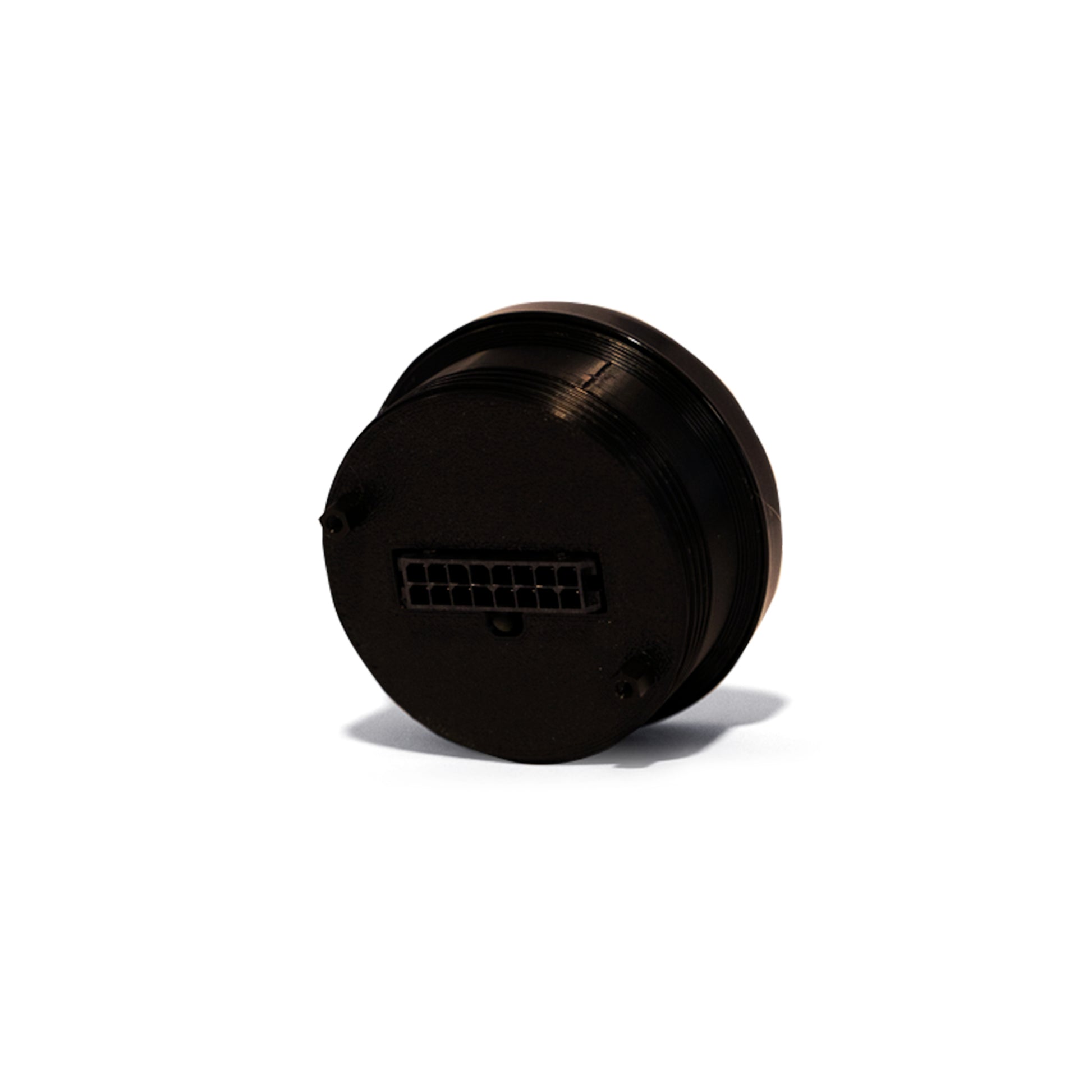

Wiring kit — Molex connector housing plus individual pre-crimped wires
Plug in only the wires you need for your install (power, sensors, CAN, outputs, lighting)
Sensors sold separately — use your own compatible sensors, or add REVVGAUGE sensor looms.
⚡ Why REVVGAUGE

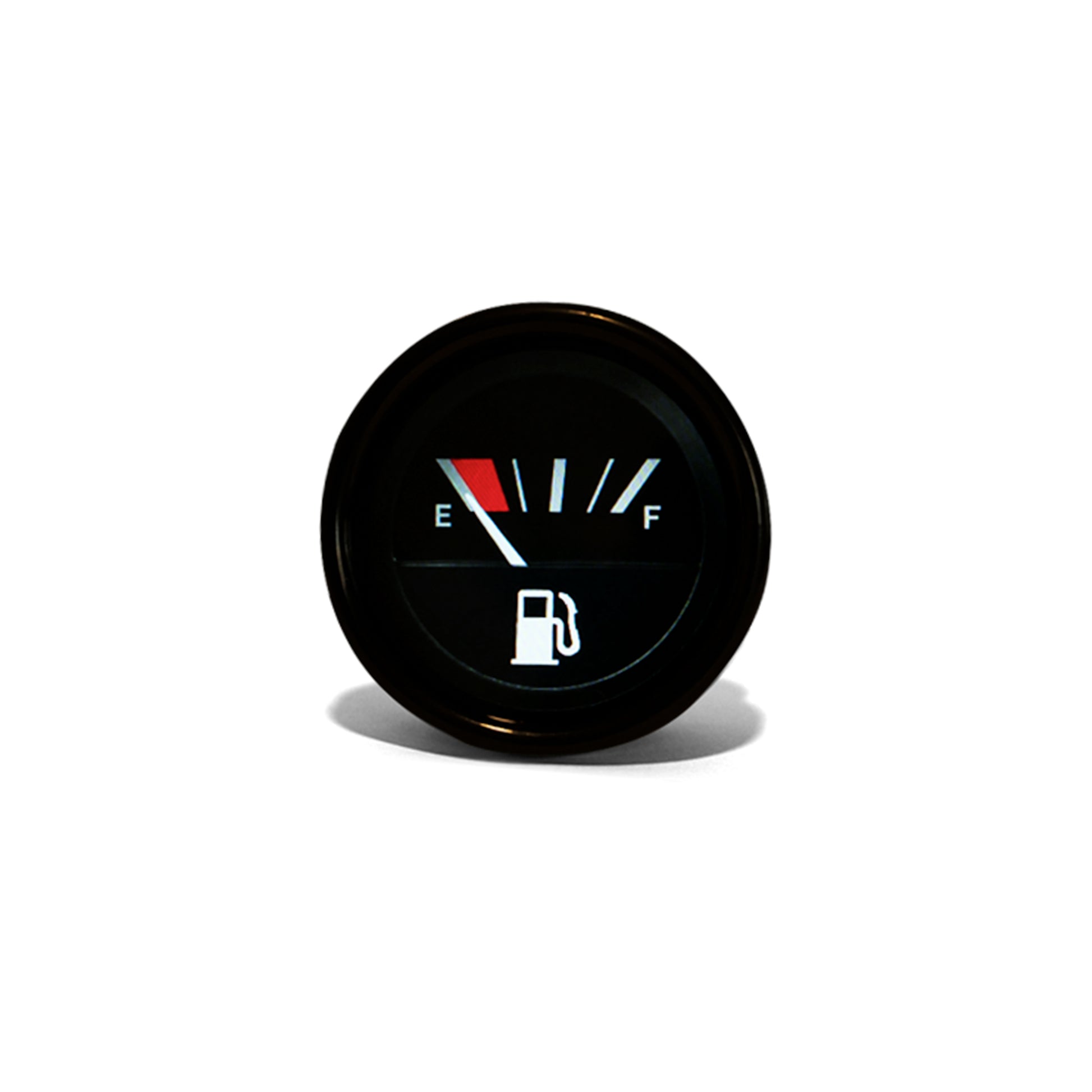

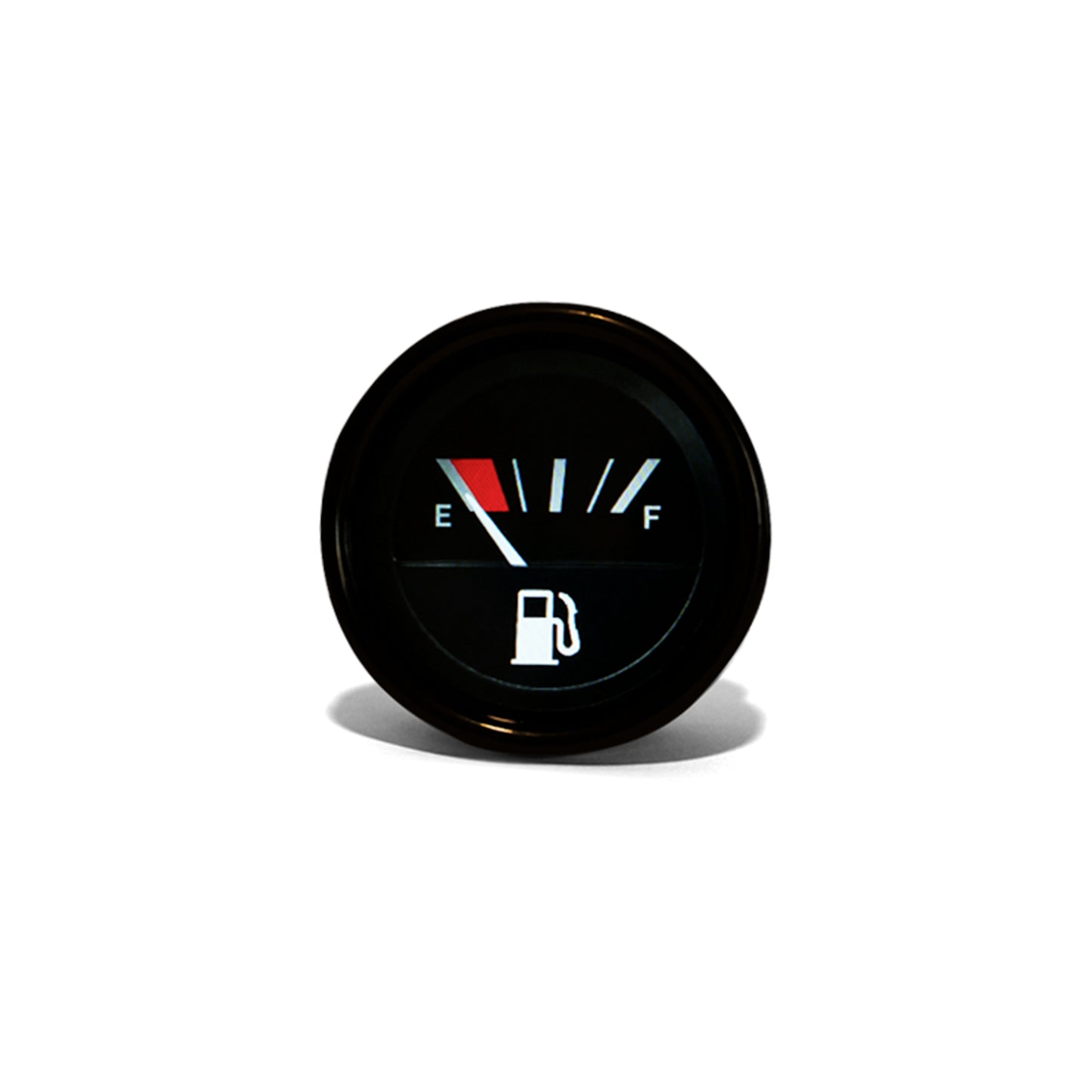

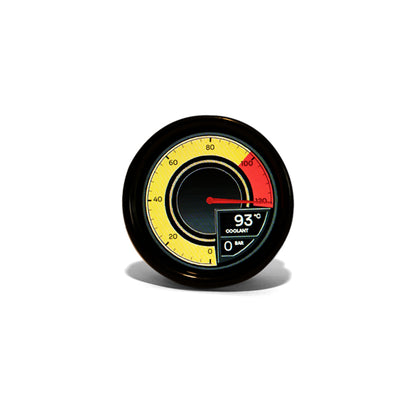

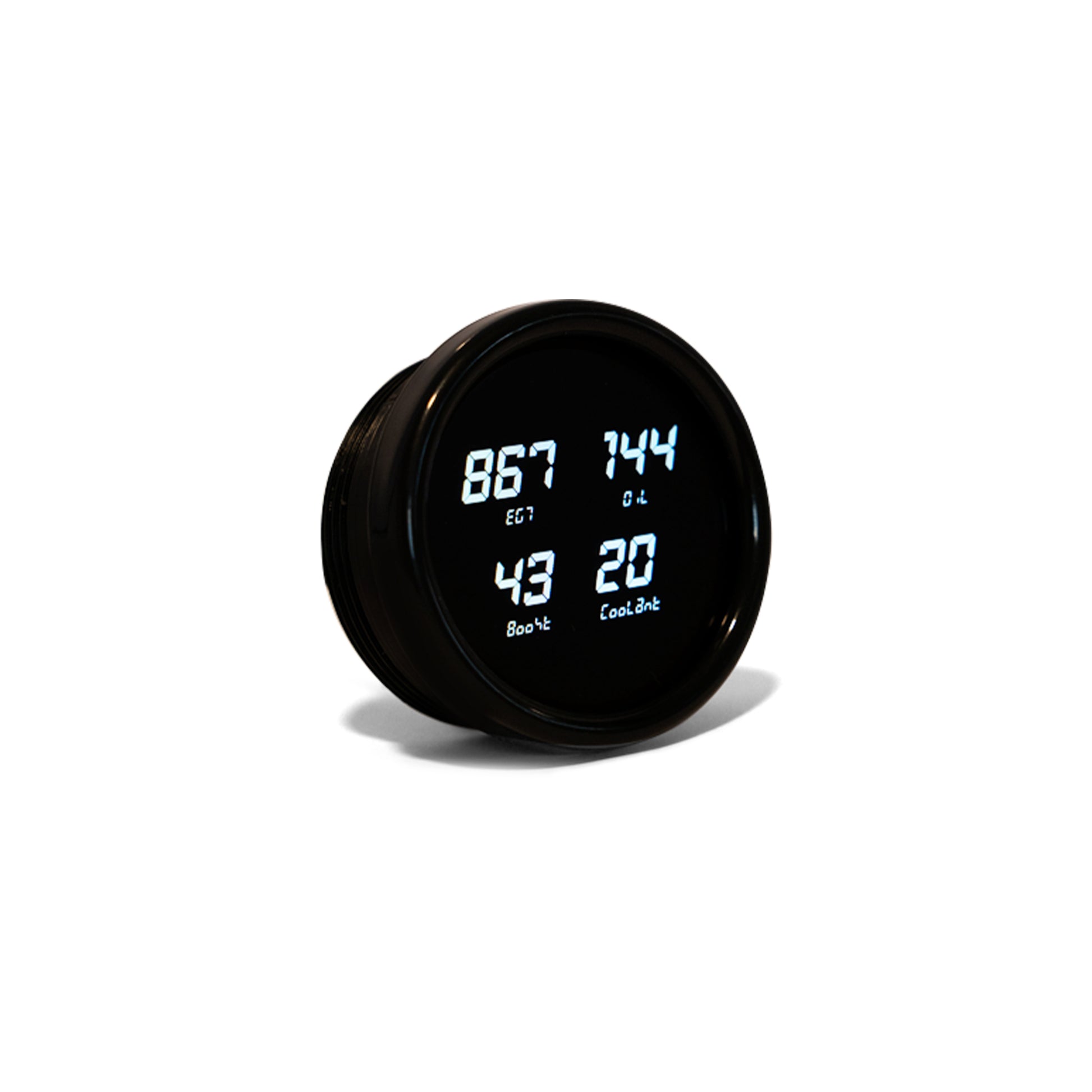

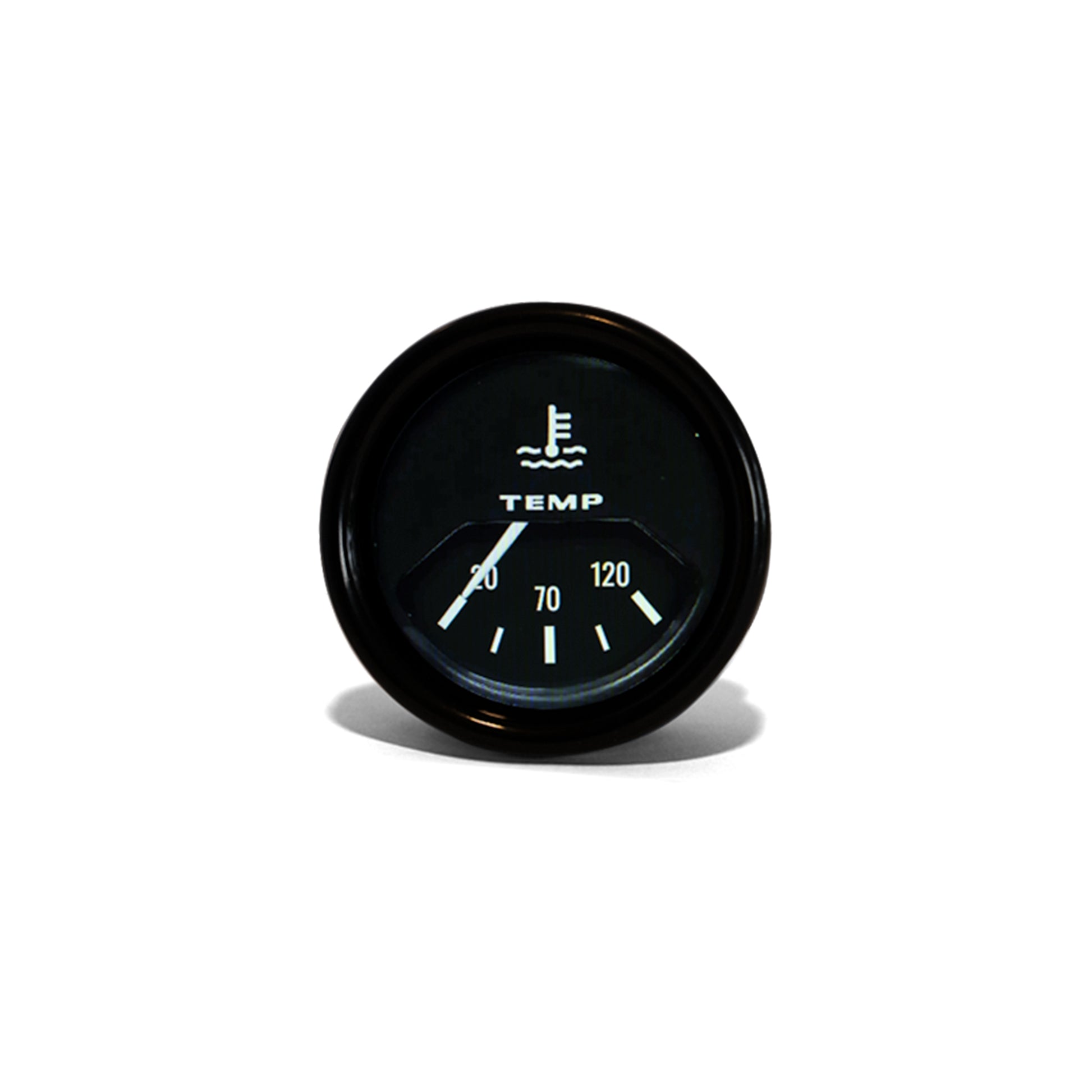

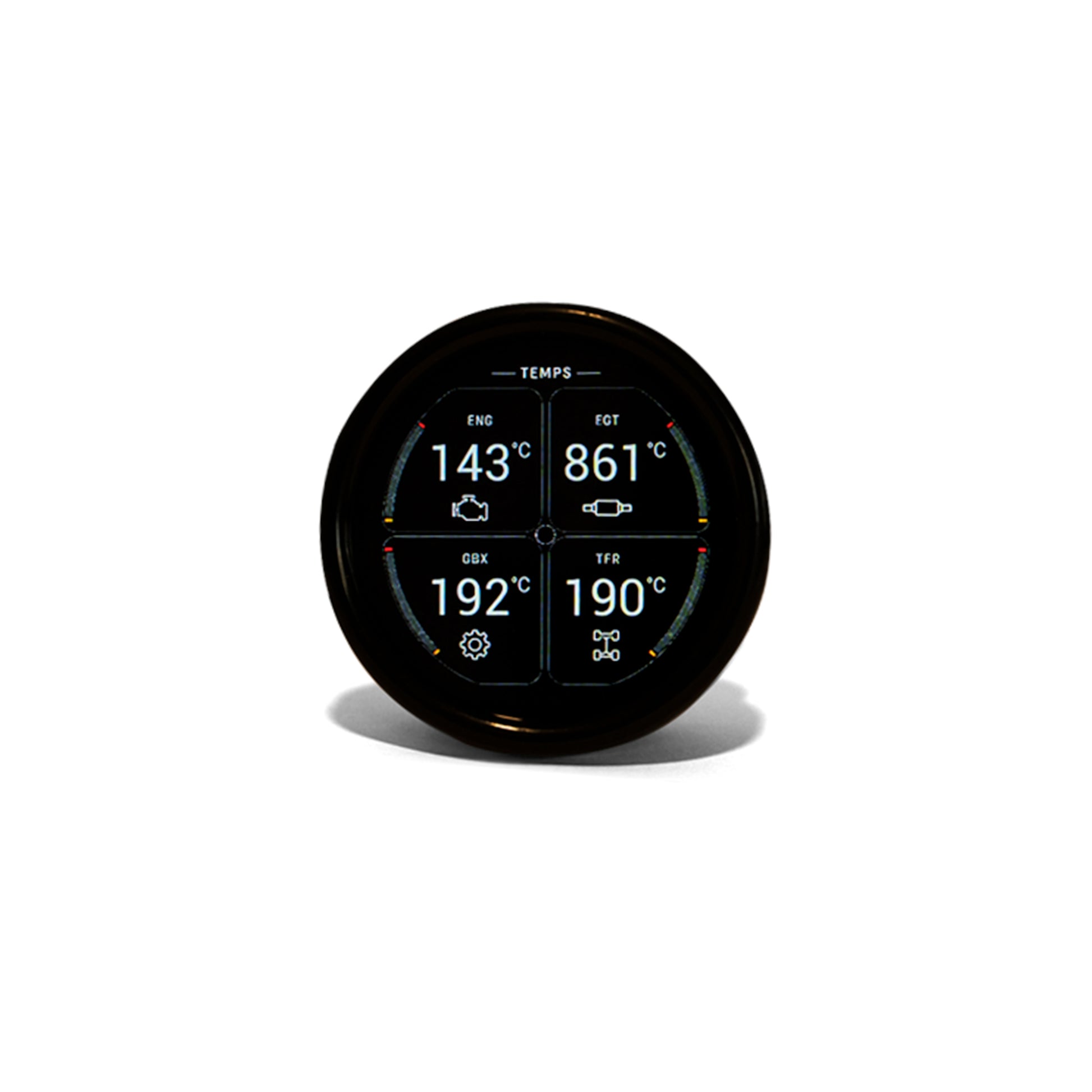

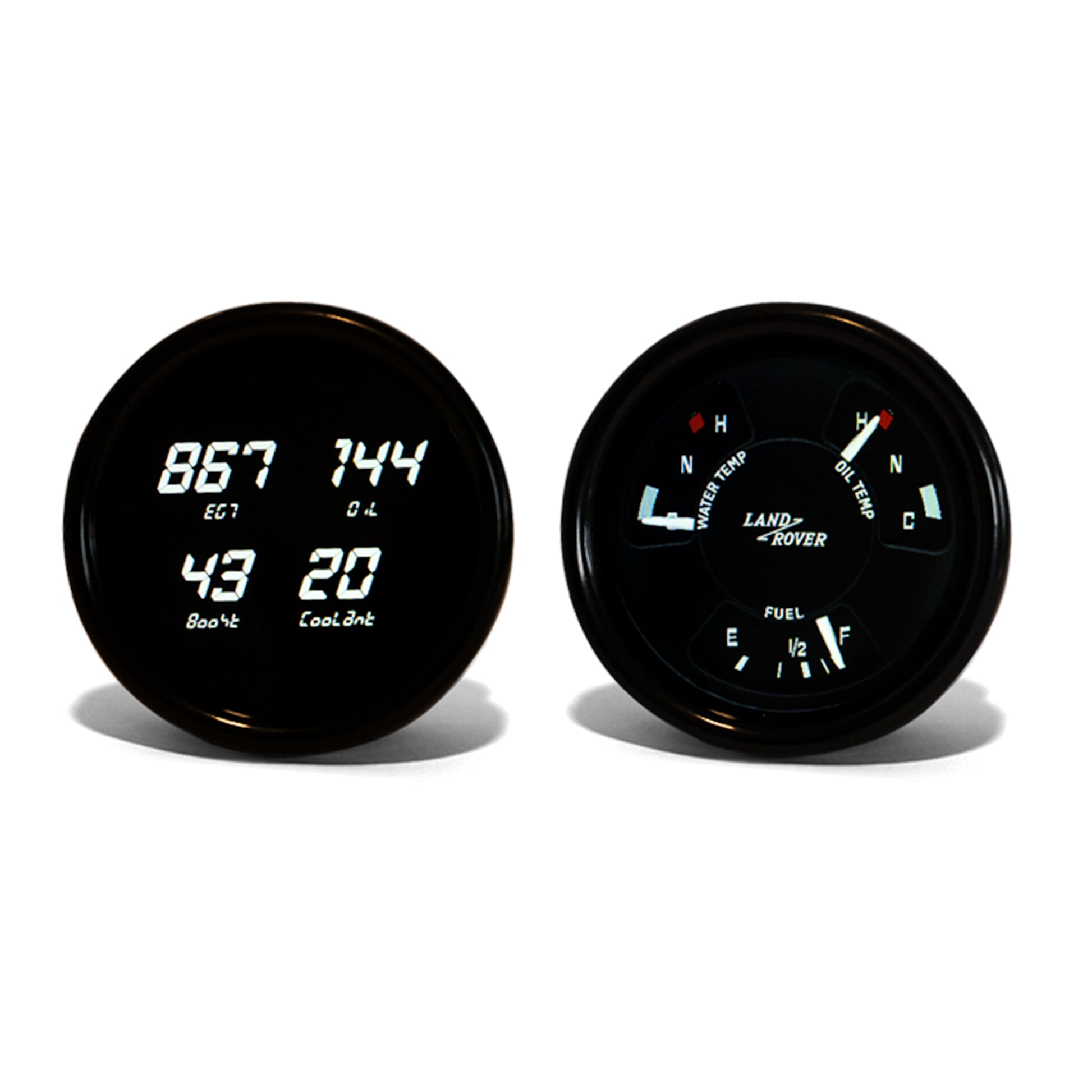

- Total design freedom — place analog meters, digital values, labels, and images anywhere on screen
- 6 analog inputs — linear 0–5 V sensors or NTC temperature probes
- CAN bus — native OBD2; native Haltech support coming (already in the gauge and app, yet to be tested on a physical vehicle); input your own CAN frame definitions for MoTeC, MegaSquirt, OEM CAN, and more via the app; CAN Hi/Lo included on the harness (OBD cable optional); onboard 120 Ω termination resistor toggleable via the app
- 2 programmable outputs — triggerable on sensor reading thresholds
- Lighting input — toggles between your light and dark mode designs automatically with your headlamp circuit; fine-tune in the app
- 12 V & 24 V
- High-brightness display — readable in direct sunlight
- iOS & Android app — design, configure, and update firmware
📋 Technical specifications
| Size | 52 mm |
|---|---|
| Supply voltage (VIN) | 12–24 V nominal (7–28 V operating range) |
| +5 V sensor output | 5 V, 200 mA max continuous |
| Analog inputs | 6 channels — 0–5 V linear or NTC (100 Ω–50 kΩ) |
| CAN bus | CAN H / CAN L — 10 kbit/s to 1 Mbit/s; 120 Ω termination toggleable via app |
| Digital outputs | 2× open-drain low-side — 1 W max per output @ 12 V (MUST NOT EXCEED THIS) |
| Lighting input | Toggles between light and dark mode designs with headlamp / dimmer sense; fine-tune in app |
| Operating temperature | –40 °C to +85 °C |
| Enclosure | Water-resistant — not fully waterproof |
| Warranty | 12 months |
🔧 Installation
Straightforward for anyone comfortable with automotive wiring. Professional installation is recommended if you are not experienced. After configuration in the app, the gauge runs independently — your phone is only needed for setup and design uploads.
Multiple gauges in one vehicle are supported. Each unit has its own harness; CAN can be daisy-chained between gauges. For OBD2, only 2 gauges are officially supported per vehicle.
