REVVGAUGE Thermocouple Amplifier (Coming soon)

REVVGAUGE Thermocouple Amplifier (Coming soon)

$89.00 AUD
$89.00 AUD
Sale Sold out
Taxes included.

Monitor EGT and exhaust temperatures on your REVVGAUGE with a ready-to-install thermocouple kit. The Thermocouple Amplifier includes a K-type thermocouple and an amplifier that converts it to a linear 0–5 V signal scaled for 0–1000 °C — install the probe, wire the amplifier to your gauge harness, and configure the channel in the app.

COMING SOON! Hoping will be available for next order.

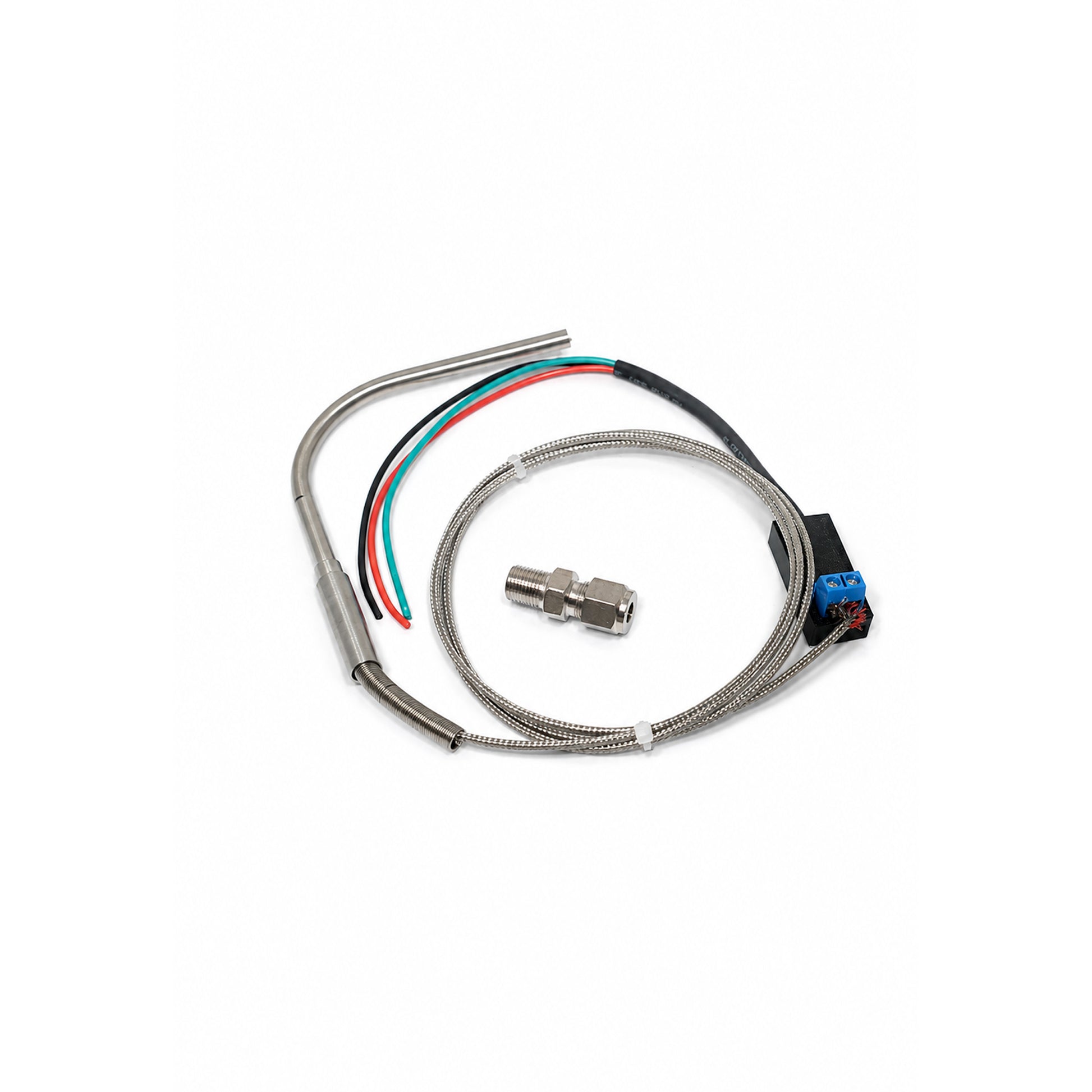

What’s included
  • 1× K-type thermocouple — EGT / high-temperature probe for exhaust and similar applications
  • 1× K-type thermocouple amplifier — converts thermocouple millivolts to a linear 0–5 V analog output (0–1000 °C)

Does not include a REVVGAUGE unit.

Why this kit
  • Built for REVVGAUGE — 0–5 V linear output, compatible with REVVGAUGE analog inputs
  • K-type thermocouple included — matched probe and amplifier in one kit
  • 0–1000 °C range — scaled for exhaust gas and high-temperature monitoring
  • Simple scaling — 0 V = 0 °C · 5 V = 1000 °C (5 mV per °C)
  • Powered from the gauge — amplifier supply from REVVGAUGE pin 15
  • Configure in the app — set up your linear temperature channel and scaling in the REVVGAUGE app
Technical specifications
Kit type K-type thermocouple + amplifier
Thermocouple type K-type
Temperature range 0 °C to 1000 °C
Supply voltage 5 V DC
Output signal 0–5 V (linear)
Output scaling 0 V = 0 °C · 5 V = 1000 °C
REVVGAUGE connection OUT to an AIN pin · +5 V to pin 15 · GND to pin 14
Compatibility REVVGAUGE Gauge Unit V1.0
Installation

Install the included K-type thermocouple in your exhaust / EGT bung or suitable high-temperature location. Connect it to the amplifier’s thermocouple input, observing correct polarity (K+ / K−).

Wire the amplifier to your REVVGAUGE harness:

  • OUT → an available AIN pin
  • +5 V → pin 15
  • GND → pin 14 GND

Use pre-crimped wires from your standard loom where needed. Configure the channel as a linear 0–5 V sensor in the REVVGAUGE app and set temperature scaling to 0 V = 0 °C and 5 V = 1000 °C.

Do not connect the K-type thermocouple directly to the gauge — always use the amplifier. Mount the amplifier away from extreme heat and exhaust components. Keep thermocouple wire runs as short and tidy as practical.
