REVVGAUGE Boost Pressure Sensor
REVVGAUGE Boost Pressure Sensor
Monitor boost and vacuum on your REVVGAUGE with a ready-to-install linear sensor kit. The Boost Pressure Sensor includes a −1 to 4 bar transducer and a matched 3-wire wiring loom — connect the sensor to your intake plumbing, wire it to your gauge harness, and configure the channel in the app.
INTERNATIONAL SHIPPING IS NOW CLOSED. THE REMAINING STOCK IS AVAILABLE TO AUSTRALIAN CUSTOMERS ONLY.
Shipping on 7 August 2026.
📦 What’s included

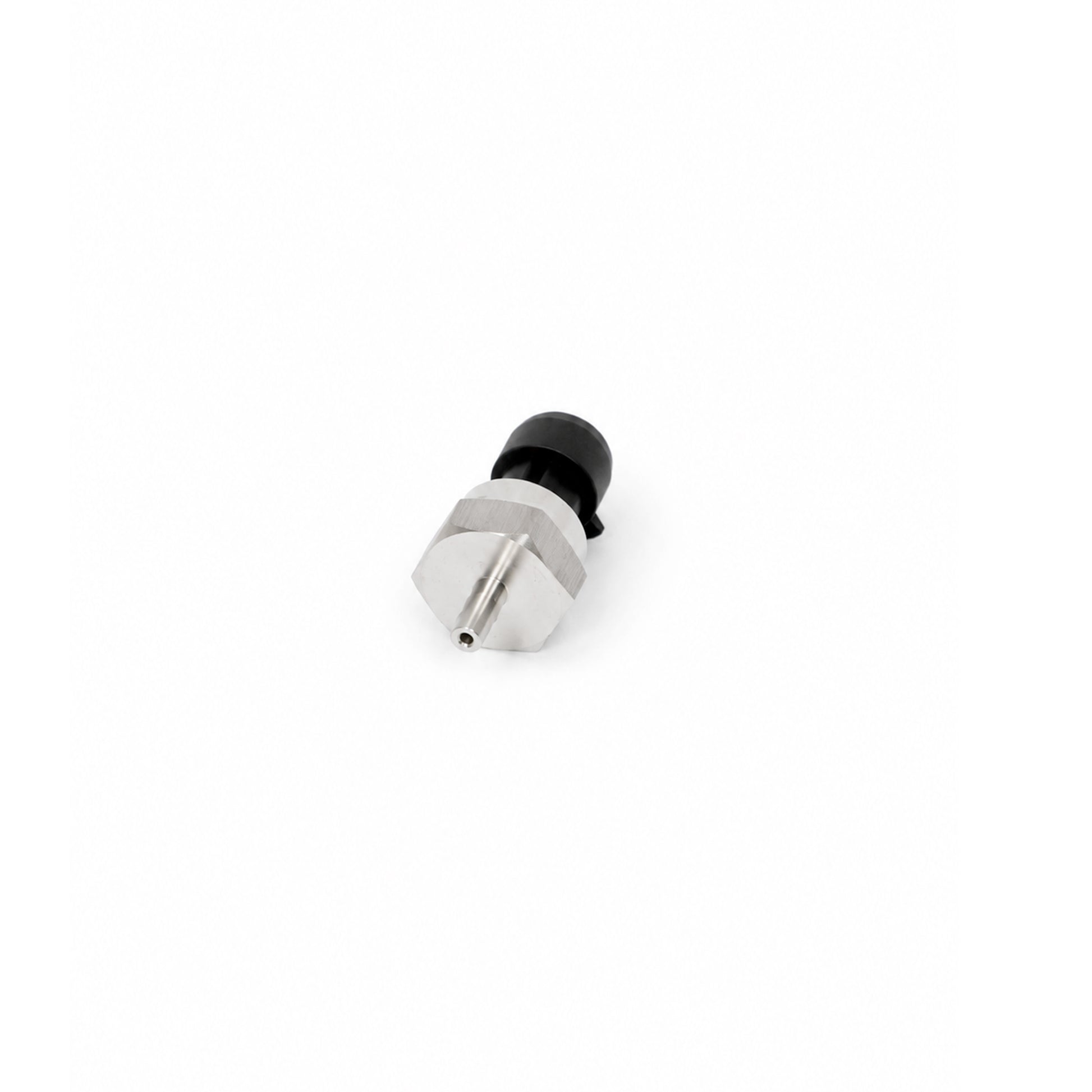

- 1× boost / vacuum pressure sensor — −1 to 4 bar range, 5 V linear output (0.5–4.5 V), hose-barbed pressure port

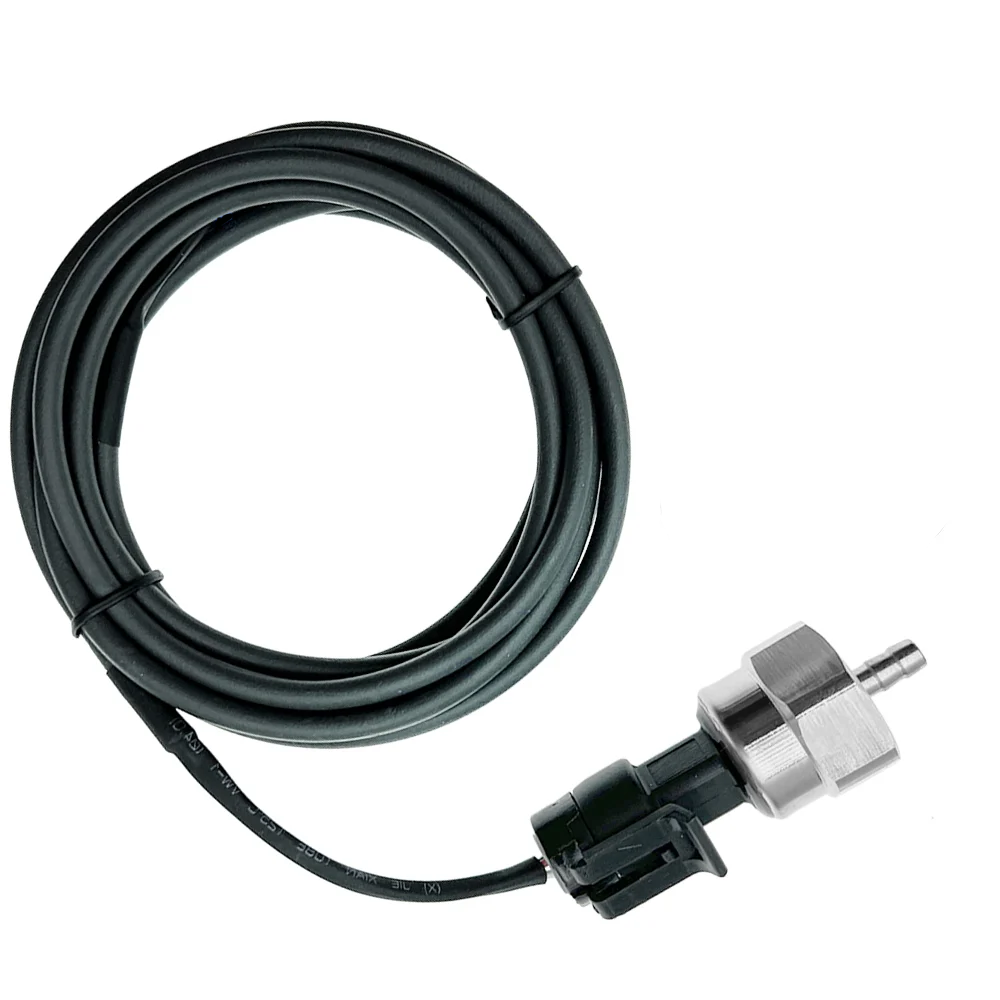

- 1× 3-wire linear sensor loom — 1.5 m pigtail in conduit for clean routing, with sealed Metri-Pack 150 connector at the sensor end
Does not include a REVVGAUGE unit.
⚡ Why this sensor
- Built for REVVGAUGE — 5 V linear analog output, compatible with REVVGAUGE 0–5 V analog inputs
- Vacuum and boost in one — −1 to 4 bar range covers manifold vacuum on NA engines and boost on turbo or supercharged builds (~58 PSI max)
- Matched loom included — sealed 3-pin Metri-Pack connector mates with the sensor; +5 V, signal, and ground carried on colour-coded wire in conduit for clean routing
- Powered from the gauge — sensor supply from REVVGAUGE pin 15 (+5 V, 200 mA max)
- Configure in the app — set up your linear boost/vacuum channel and scaling in the REVVGAUGE app
📋 Technical specifications
| Sensor type | 5 V linear boost / vacuum transducer |
|---|---|
| Pressure range | −1.0 to 4.0 bar (−14.5 PSI vacuum to ~58 PSI boost) |
| Pressure connection | Hose barb (suits boost / vacuum line) |
| Supply voltage | 5 V DC |
| Output signal | 0.5–4.5 V (linear) |
| Wiring loom length | 1.5 m |
| Loom covering | Conduit (clean routing) |
| Loom wire | 0.5 mm² (3-wire) |
| Loom — sensor end | Metri-Pack 150 sealed 3-pin plug (+5 V, OUT, GND) |
| Loom — harness end | Loose stripped wire ends |
| Loom pinout | Orange (+5 V) · Green (OUT) · Black (GND) |
| REVVGAUGE connection | OUT to an AIN pin · +5 V to pin 15 · GND to pin 14 |
| Compatibility | REVVGAUGE Gauge Unit V1.0 |
🔧 Installation
Tee the sensor into your intake manifold boost line, charge pipe, or a suitable vacuum/boost source using appropriate hose and clamps. Plug the sensor into the loom’s Metri-Pack 150 connector at the sensor end.
Route the loom to your REVVGAUGE harness. Terminate the harness end at your Molex connector:
- Green (OUT) → an available AIN pin
- Red (+5 V) → pin 15
- Black (GND) → pin 14 GND
Use pre-crimped wires from your standard loom where needed. Configure the channel as a linear 0–5 V sensor in the REVVGAUGE app and set your pressure scaling (0.5–4.5 V output = −1 to 4 bar).
Install with the engine off. Keep hose runs short and secure. Do not expose the sensor to excess heat or oil contamination beyond its rated environment.
