REVVGAUGE Coolant Temperature Sensor
REVVGAUGE Coolant Temperature Sensor
Monitor coolant temperature on your REVVGAUGE with a ready-to-install NTC sensor kit. The Coolant Temperature Sensor includes a 1/8 NPT probe and a matched 2-wire NTC wiring loom — plug the sensor in, wire it to your gauge harness, and configure the channel in the app.
INTERNATIONAL SHIPPING IS NOW CLOSED. THE REMAINING STOCK IS AVAILABLE TO AUSTRALIAN CUSTOMERS ONLY.
Shipping on 7 August 2026.
📦 What’s included

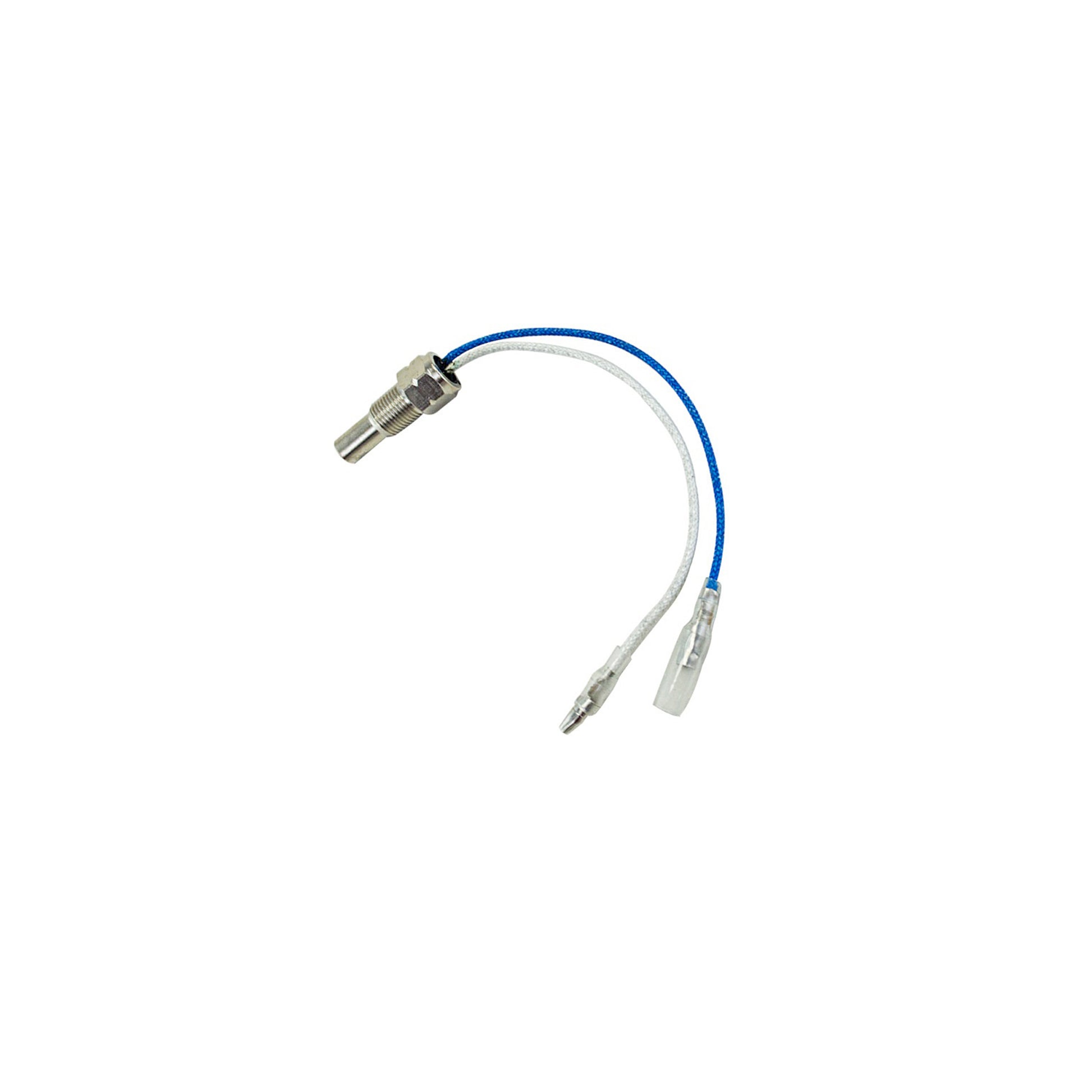

- 1× NTC temperature sensor — 1/8 NPT threaded probe with two braided lead wires (0°C to 150°C)
- 1× 2-wire NTC wiring loom — 1.5 m TXL pigtail with bullet connectors at the sensor end
Does not include a REVVGAUGE unit.
⚡ Why this sensor
- Built for REVVGAUGE — 2-wire NTC type, compatible with REVVGAUGE analog inputs (100 Ω to 50 kΩ)
- Coolant & oil ready — 1/8 NPT fit suits common coolant ports, radiator bosses, and oil galleries
- Matched loom included — no hunting for the right pigtail; bullet connectors mate directly with the sensor leads
- Configure in the app — set up your NTC channel and temperature scaling in the REVVGAUGE app
- Durable leads — braided sensor wires and automotive TXL loom wire for engine-bay use
📋 Technical specifications
| Sensor type | 2-wire NTC temperature probe |
|---|---|
| Thread | 1/8 NPT (0.125 in) |
| Temperature range | 0°C to 150°C |
| Sensor leads | 2× braided wires |
| Wiring loom length | 1.5 m |
| Loom wire | TXL, 0.5 mm² (2-wire) |
| Loom — sensor end | Green (NTC+) male bullet · Black (NTC−) female bullet |
| Loom — harness end | Loose stripped wire ends |
| REVVGAUGE connection | Signal to an AIN pin · return to pin 14 GND |
| Compatibility | REVVGAUGE Gauge Unit V1.0 |
🔧 Installation
Install the 1/8 NPT sensor in your coolant passage, radiator boss, or suitable fitting. Connect the loom’s bullet connectors to the sensor leads — green (NTC+) to the male bullet, black (NTC−) to the female bullet.
Route the loom to your REVVGAUGE harness. Terminate the harness end at an available AIN pin and pin 14 GND on your Molex connector (use a pre-crimped green wire from your standard loom for the analog input if needed).

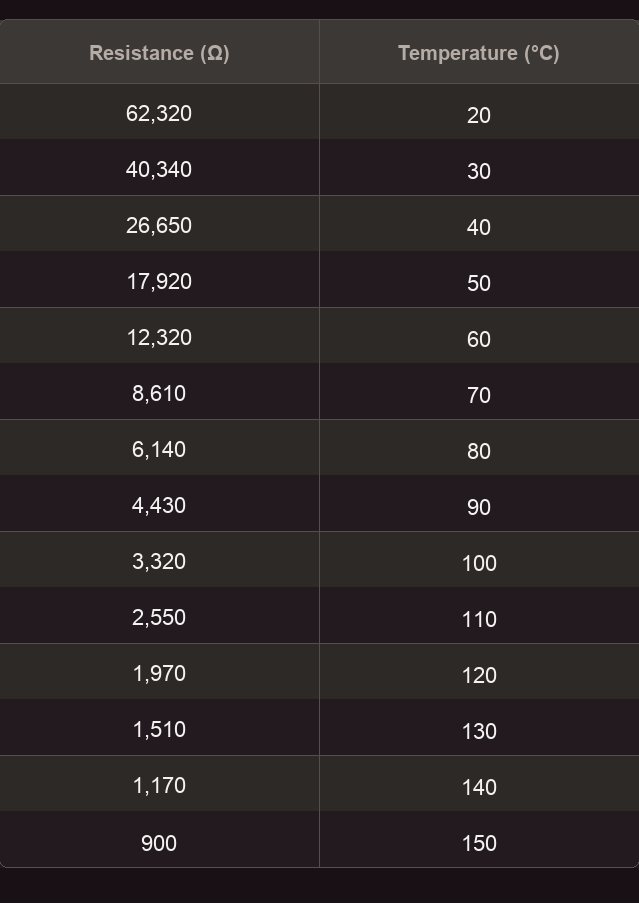

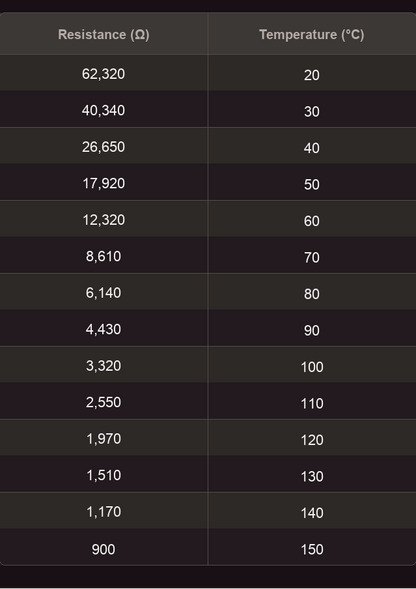

Configure the channel as an NTC sensor in the REVVGAUGE app. Use the sensor manufacturer’s resistance–temperature data for accurate readings if required.
Suitable for coolant temperature monitoring. Can also be used for oil temperature in a compatible 1/8 NPT location.
