REVVGAUGE Oil Pressure Sensor
REVVGAUGE Oil Pressure Sensor
Monitor oil pressure on your REVVGAUGE with a ready-to-install linear sensor kit. The Oil Pressure Sensor includes a 150 PSI 1/8 NPT transducer and a matched 3-wire wiring loom — connect the sensor, wire it to your gauge harness, and configure the channel in the app.
INTERNATIONAL SHIPPING IS NOW CLOSED. THE REMAINING STOCK IS AVAILABLE TO AUSTRALIAN CUSTOMERS ONLY.
Shipping on 7 August 2026.
📦 What’s included

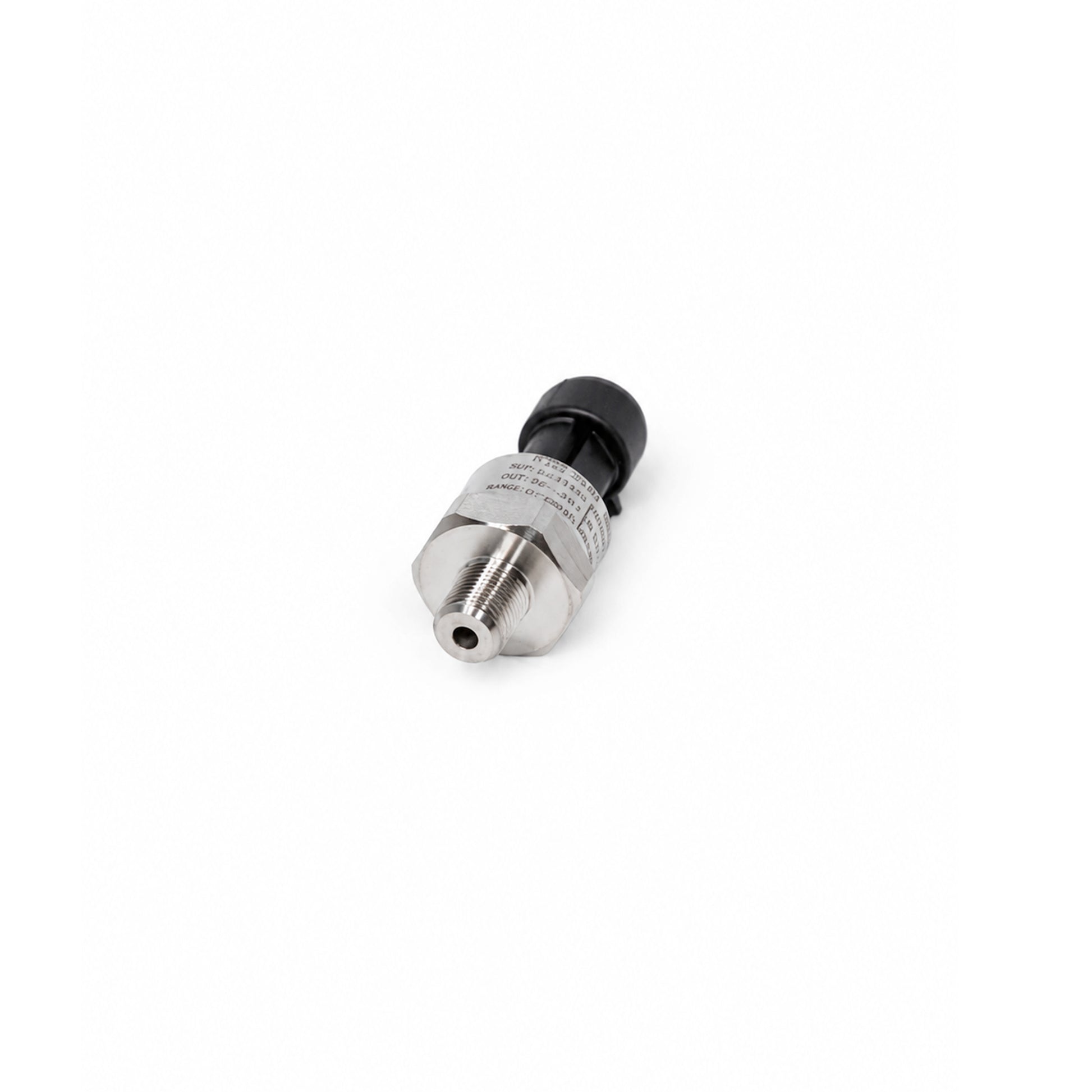

- 1× oil pressure sensor — 150 PSI, 1/8 NPT threaded, 5 V linear output (0.5–4.5 V)

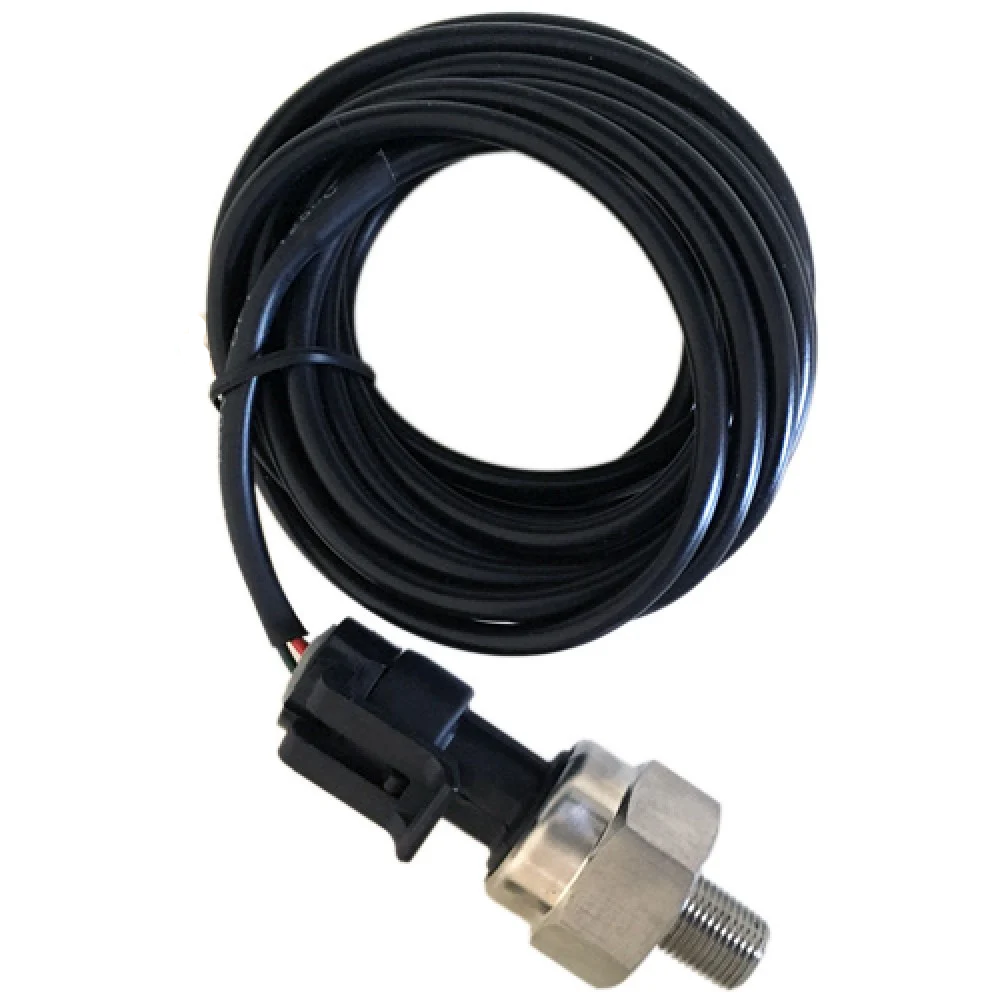

- 1× 3-wire linear sensor loom — 1.5 m pigtail with sealed Metri-Pack 150 connector at the sensor end
Does not include a REVVGAUGE unit.
⚡ Why this sensor
- Built for REVVGAUGE — 5 V linear analog output, compatible with REVVGAUGE 0–5 V analog inputs
- 150 PSI range — suits engine oil pressure monitoring on street, track, and performance builds
- Matched loom included — sealed 3-pin Metri-Pack connector mates with the sensor; +5 V, signal, and ground carried on colour-coded wire
- Powered from the gauge — sensor supply from REVVGAUGE pin 15 (+5 V, 200 mA max)
- Configure in the app — set up your linear pressure channel and scaling in the REVVGAUGE app
📋 Technical specifications
| Sensor type | 5 V linear pressure transducer |
|---|---|
| Pressure range | 150 PSI |
| Thread | 1/8 NPT |
| Supply voltage | 5 V DC |
| Output signal | 0.5–4.5 V (linear) |
| Wiring loom length | 1.5 m |
| Loom wire | 0.5 mm² (3-wire) |
| Loom — sensor end | Metri-Pack 150 sealed 3-pin plug (+5 V, OUT, GND) |
| Loom — harness end | Loose stripped wire ends |
| Loom pinout | Orange (+5 V) · Green (OUT) · Black (GND) |
| REVVGAUGE connection | OUT to an AIN pin · +5 V to pin 15 · GND to pin 14 |
| Compatibility | REVVGAUGE Gauge Unit V1.0 |
🔧 Installation
Install the 1/8 NPT sensor in a suitable oil pressure port, tee, or gallery. Plug the sensor into the loom’s Metri-Pack 150 connector at the sensor end.
Route the loom to your REVVGAUGE harness. Terminate the harness end at your Molex connector:
- Green (OUT) → an available AIN pin
- Red (+5 V) → pin 15
- Black (GND) → pin 14 GND
Use pre-crimped wires from your standard loom where needed. Configure the channel as a linear 0–5 V sensor in the REVVGAUGE app and set your pressure scaling (0.5–4.5 V output = 0–150 PSI).
Install with the engine off. Use thread sealant suitable for oil pressure applications. Do not overtighten the sensor into the fitting.
